module delay power off disconnect trigger delay cycle timing circuit XY-LJ02

One way relay module delay power off disconnect trigger delay cycle timing circuit switch

0.01 second (minimum) ~9999 minutes (maximum) continuously adjustable

This product LCD display, very clear, easy to use, powerful, but please buyers to see the operating instructions of this product, very practical products.

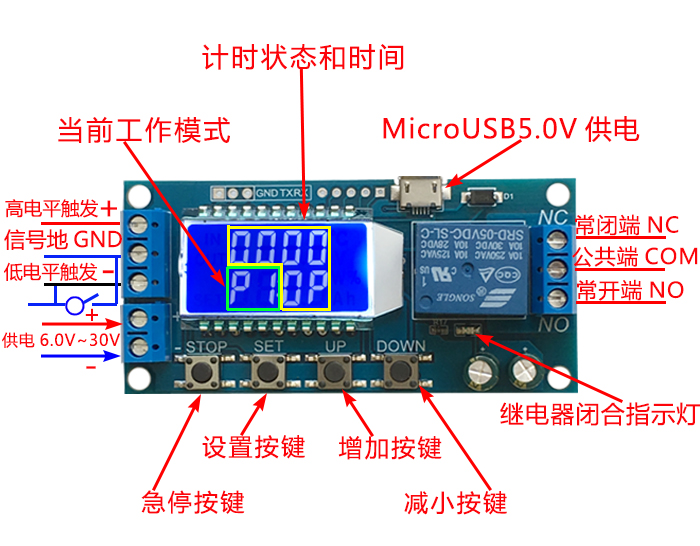

Module highlights:

1.  With liquid crystal display, the current mode and parameters are clear at a glance, very clear, simple and practical;

2.  Support high and low level trigger, switch quantity control, suitable for most occasions;

3. Wide voltage power supply ( 6~30V ) supports micro USB 5.0V power supply , which is very convenient to use;

4.  Support UART data upload and parameter setting;

5.  One button emergency stop function ( STOP button), with reverse connection protection, reverse connection does not burn;

6.  Added sleep mode, after enabling, no operation within 5 minutes, automatically turn off the LCD backlight; any button wakes up;

7.  Different OP , CL , LOP parameters can be set . These parameters are independent of each other and saved separately;

8.  All setting parameters are automatically powered down and saved.
