AM312 Human Body Module Instruction Manual

First, module description

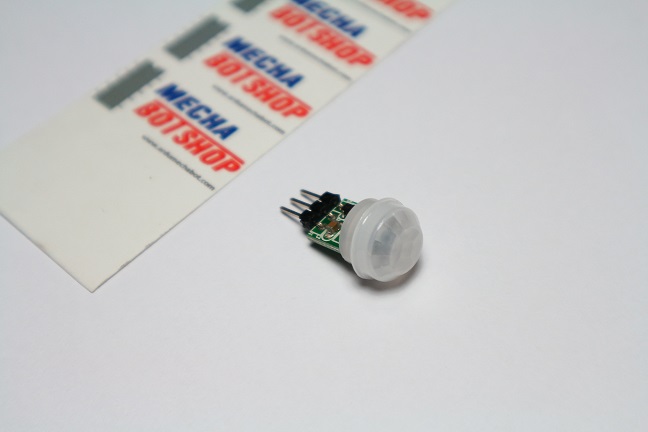

AM312 body sensing module: It is a digital intelligent automatic control product based on passive human body infrared technology. It has high sensitivity and reliability, and is widely used in various types of automatic sensing electrical equipment.

Second, schematic diagram and typical application

Third, technical parameters

1. Working voltage: DC 2.7-12V;

2. Static power consumption: <0.1mA;

3. Delay time: 2 seconds;

4. Blocking time: 2 seconds;

5. Trigger mode: repeatable;

6. Sensing range: ≤ 100 degrees cone angle, 3-5 meters; (according to the specific lens)

7. Working temperature: -20 - +60°C

8.PCB Dimensions: 10mm*8mm

9. Module Lens: Lens
