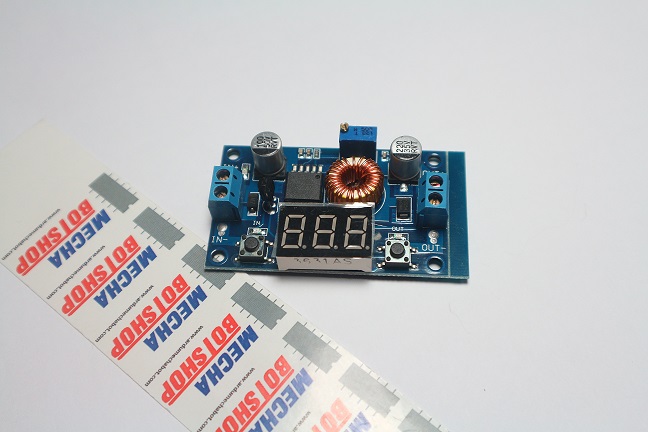

Step-down 5A 75W DC-DC

Module Highlights:

• 5A high-power high-efficiency low-voltage ripple!
• With power indicator!
• Onboard voltage meter, voltmeter can be self-calibration, there will never be a voltage meter is not accurate

• Module performance and features:



  ● With power indicator

  ● with a voltmeter display and the voltmeter can be self-calibration. Using a more advanced voltage microprocessor, voltmeter error ± 0.05V , range 0 ~ 40V . (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage above 4.5V )

  ● Touch the key to switch the measurement input or output voltage, and the indicator shows which circuit voltage is being measured, and save the settings, even if the power is turned on again.

  ● The voltmeter can be turned off, when you do not need to touch the left button can be easily achieved.

  ● With terminal blocks, no soldering iron can also be used easily, and keep the wire connection points.

  ● input voltage of 4.0 ~. 3 . 8 V . ( Input voltage must be higher than the output voltage1.5v above )

  ● Adjustable output voltage range 1.25V ~ 3 5 V continuously adjustable. ( Input voltage is1.5V higher than the output voltage )

  ● Output current up to 5A , it is recommended to use within 4.5A .

  ● Output power up to 75W .

  ● high conversion efficiency, up to 96% (efficiency and input, output voltage, current, pressure related)

  ● Load regulation rate S ( I ) ≤ 0.8% , voltage regulation rate S ( u ) ≤ 0.8%

  ● With overheating protection and short circuit protection

  ● Size  6 0 * 3 7 * 18mm

  ● Weight  28 g
