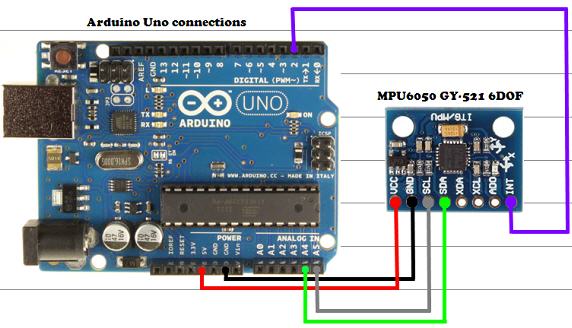

MPU-6050 GY-521 gyro sensors 3 Axis

Name: MPU-6050 module (three-axis gyroscope + triaxial accelerometer)

Use chip: MPU-6050

Power supply: 3-5v (internal low dropout regulator)

Communication: standard IIC communication protocol

Built-in 16bit AD converter chip, 16-bit data output

Gyroscope range: ± 250 500 1000 2000 ° / s

Acceleration Range: ± 2 ± 4 ± 8 ± 16g

Using Immersion Gold PCB, machine welding process to ensure quality

2.54mm pitch

Schematics, manuals and reference data relevant documentation

MPU-6000 is the world's first integrated 6-axis motion processing components, compared to multi-component program, eliminating the inter-axle combination of gyroscope and accelerator when the problem of poor, reducing the amount of packing space. MPU-6000 integrated 3-axis gyroscope, 3-axis accelerometer, and other brands of accelerator-containing by second I2C port connection, magnetic sensors, digital motion processing or other sensors (DMP: Digital Motion Processor) hardware acceleration engine, by the main I2C port to form a single data stream, output to the application side complete 9-axis integration algorithm technology.

InvenSense's motion processing library that can handle complex motion sensing data, reducing the motion processing computation load the operating system, and provides a framework of the API for application development.

MPU-6000 is the angular velocity of the full scale range of ± 250, ± 500, ± 1000 and ± 2000 ° / sec (dps), can accurately recover Zong fast and slow movements, and the user can program the full control of the accelerator grid flu measuring range of ± 2g, ± 4g ± 8g and ± 16g. Products can be transmitted via the I2C or up to 400kHz up to 20MHz SPI.
